A black S&M Pitchfork XLT 14 Inch Fork with the name "Pitchfork XLT" displayed on it, made from double-butted 4130 CrMo and equipped with a light gray steerer tube.

S&M Pitchfork XLT 14 Inch Fork

Black / 33mm
$166.76
$166.76 $256.56
Skip to product information
A black S&M Pitchfork XLT 14 Inch Fork with the name "Pitchfork XLT" displayed on it, made from double-butted 4130 CrMo and equipped with a light gray steerer tube.
  • A black S&M Pitchfork XLT 14 Inch Fork with the name "Pitchfork XLT" displayed on it, made from double-butted 4130 CrMo and equipped with a light gray steerer tube.

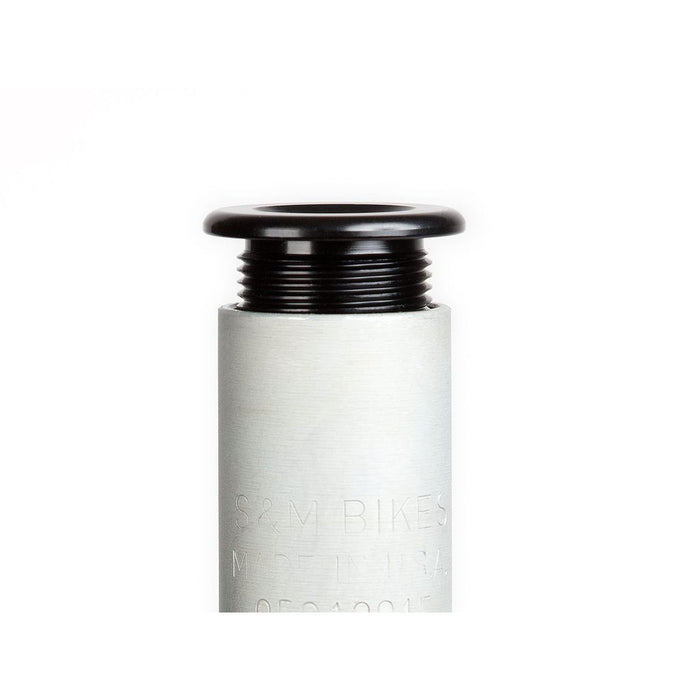

  • Close-up of a CNC-machined metal bicycle headset spacer featuring a black top cap with embossed text "S&M Pitchfork XLT 14 Inch Fork Made in USA".

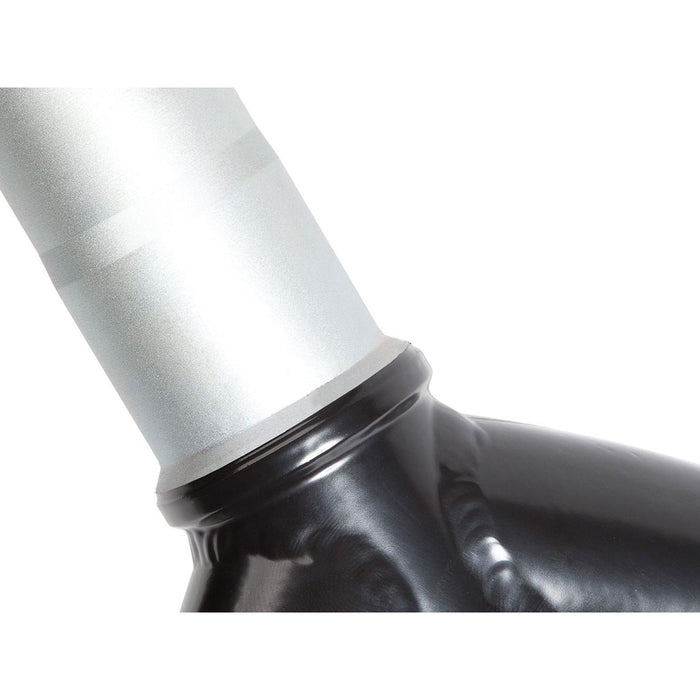

  • Close-up of the S&M Pitchfork XLT 14 Inch Fork, a black and metallic CNC-machined piece featuring smooth surfaces and a circular joint connection, crafted from high-quality 4130 CrMo for exceptional durability.

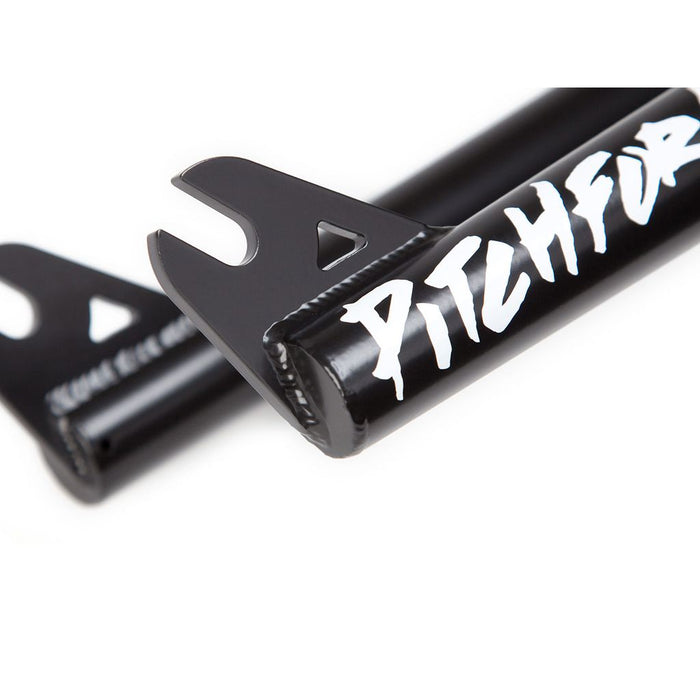

  • Close-up of the CNC-machined dropouts on a black fork from the S&M Pitchfork XLT 14 Inch, crafted from double-butted 4130 CrMo steel, with "PITCHFUR" elegantly written in white on the side.
  • A black S&M Pitchfork XLT 14 Inch Fork with the name "Pitchfork XLT" displayed on it, made from double-butted 4130 CrMo and equipped with a light gray steerer tube.
  • Close-up of a CNC-machined metal bicycle headset spacer featuring a black top cap with embossed text "S&M Pitchfork XLT 14 Inch Fork Made in USA".
  • Close-up of the S&M Pitchfork XLT 14 Inch Fork, a black and metallic CNC-machined piece featuring smooth surfaces and a circular joint connection, crafted from high-quality 4130 CrMo for exceptional durability.
  • Close-up of the CNC-machined dropouts on a black fork from the S&M Pitchfork XLT 14 Inch, crafted from double-butted 4130 CrMo steel, with "PITCHFUR" elegantly written in white on the side.
S&M Pitchfork XLT 14 Inch Fork

S&M Pitchfork XLT 14 Inch Fork

$166.76
$166.76 $256.56
ColourBlack
Offset33mm

The S&M Pitchfork XLT for 14 inch bikes uses the same build as the rest of the XLT range: double butted, tapered 4130 chromoly legs, laser cut dropouts with a 3/8" slot and a one piece CNC machined 4130 chromoly steerer with an integrated bearing race and an extruded 6061 insert.

Steerer length is 166mm with an M24 x 1.5 compression thread and a 6mm allen slot. Axle to crown height on the 14 inch version is 242mm with 33mm of offset, the fork is 4Q baked after welding, and clearance tops out at a 2.4" S&M tyre.
